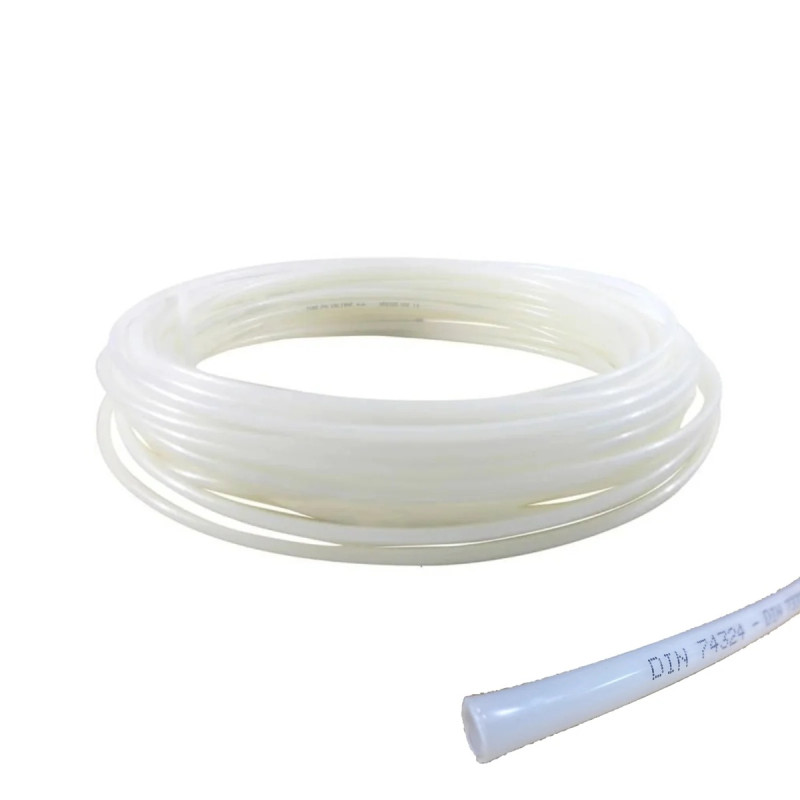

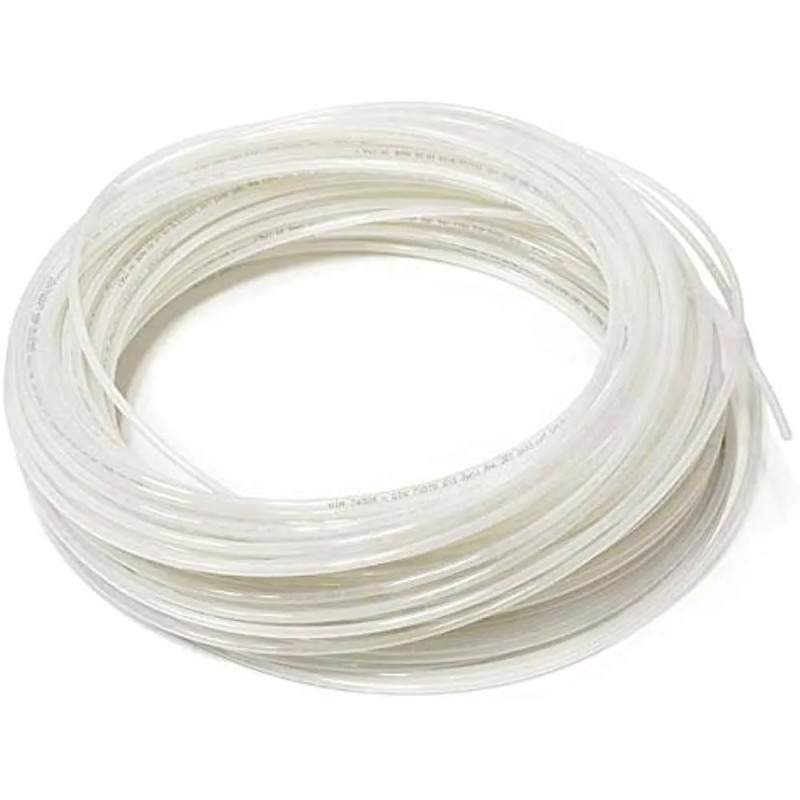

PA12 Longlife neutral tube – linear for pneumaticsh2>
Tube in polyamide PA12 (flexible linear version), suitable for pneumatics, automation and technical lines where low weight, good dimensional stability and easy handling are required. The material is stabilized (heat/light) and manufactured according to DIN 73378 / 74324 for polyamide pipes.
Main advantages
- Stability and lightness:/strong> maintains diameter under load with reduced creep tendency.
- Good chemical resistance to common oils and compressed air (always see specific fluid compatibility).i>
- Small curvature radius and easy installation in electrical/automation panels.
- Consistent quality/strong> and regular internal surfaces for linear flows.
Typical applications
- Plants of compressed air on machine tools and test benches.
- Industrial automation and quick-fit (push-in) connections.
- Technical lines on vehicles/equipment where reduced weight and clean passageways are required.
Supply and variants
Color: neutral (natural) – roll: 10 m.
- Ø internal/external:strong>4 × 6 mm/strong>
- Ø internal/external:strong>6 × 8 mm/strong>
- Ø internal/external:strong>8 × 10 mm/strong>
Technical and selection notes
- Select the diameter depending on the flow rate and the permissible pressure drop.
- Always check operating pressurestrong>, temperature And minimum radius of curvature for your size (values vary depending on diameter and conditions).
- For specific solvents or particular fluids, request the compatibility table/strong>.
The data shown is indicative and may vary based on size, conditions of use, and production batch. For critical applications, request technical confirmation.em>
