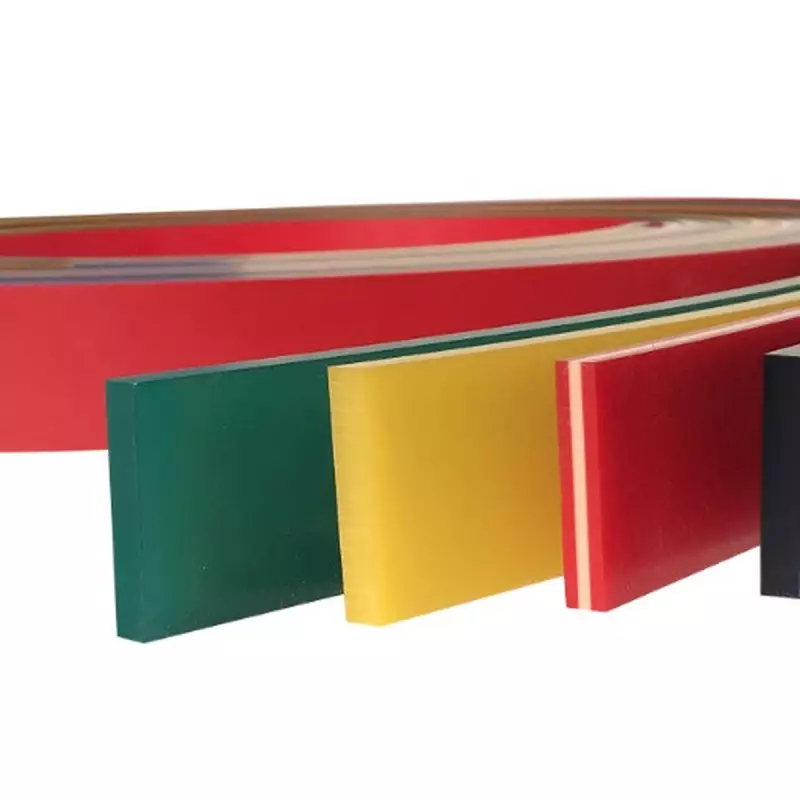

90 ShA polyurethane screen printing squeegee – P0 amber profile
90 ShA polyurethane screen printing squeegee – P0 amber profile
90 ShA polyurethane screen printing squeegee – P0 amber profile
90 ShA polyurethane screen printing squeegee – P0 amber profile

90 ShA polyurethane screen printing squeegee – P0 amber profile (3050 mm bar)

  • Material: Highly abrasion resistant MDI polyurethane Hardness: 90 Shore A (minimal deposit, excellent definition)there>
  • Profile: P0 (square edge) for printing accuracy
  • Bar length: 3050 mm (can be cut to size)
    • Color: amber Available variants: 5×25×3050 – 5×30×3050 – 9×50×3050 >
      • Ideal for: fine lines, halftones/four-color processes, low-absorbency media
      • Custom: We can also provide other sizes upon request.

Measure
€44.95
Tax included

Quantity Unit discount You Save
2 5% €4.50
3 7% €9.44
5 10% €22.48
10 15% €67.43
25 25% €280.94



90 ShA polyurethane doctor blade – P0 amber profile

Professional squeegee for screen printing in MDI polyurethane, amber color, with hardness 90 Shore A And P0 profile (square edge)Designed for low ink deposits and maximum precision on fine lines, halftones and four-color processes.p>

Why choose it/h3>

  • High definition: 90 ShA and P0 square edge ensure minimal deposits and sharp edges.
  • Wear resistance: MDI polyurethane with excellent abrasion and tear resistance.
  • 3050 mm long bar: easily cut to size for your squeegee/hose holder.
  • Stability/strong>: predictable behavior even on fine knit fabrics.

Recommended applications

  • Prints to high definition (halftone, four-color, simulations).
  • Inks with contained deposit on poorly absorbent surfaces.
  • Medium/thick mesh looms; work where ink control is required.there>

Technical specifications

Material MDI polyurethane
Hardness 90 Shore A
Profile P0 (square edge)
Color Amber
Bar length 3050 mm
Available sizes 5×25×3050 – 5×30×3050 – 9×50×3050d>
Density (indicative) ~1.25 g/cm³ (PU 90 ShA)
Elongation at break (indicative) ~500%
Breaking load (indicative) ~450 kg/cm²
Tear resistance (indicative) ~100 kg/cm
Abrasion (indicative) ~43 mm³

Use & Maintenance

  • Cutting : the bar can be cut to size with a sharp cutter, keeping the cut perpendicular.
  • Storage : Store with the “blade” facing upwards to avoid deformation.
  • Cleaning : Remove ink residue, especially around the edge of the frame. If the edge shows any micro-imperfections, smooth them out with very fine sandpaper or a squeegee.

Notes

The technical values are indicative and refer to PU MDI material with a hardness of 90 ShA. Performance may vary depending on the screen, ink, pressure, and printing speed.

901907
8058951954837
