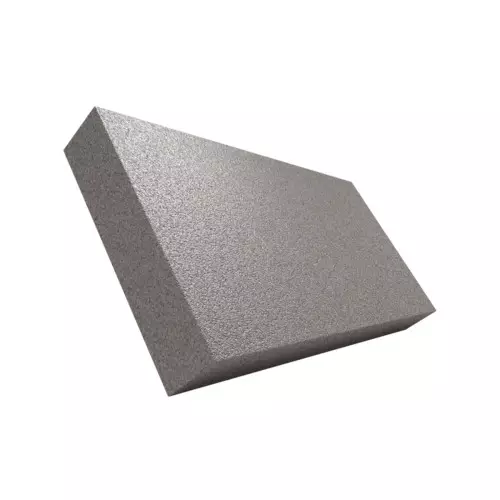

TERMOLAN GREYPOR X31 TK8 RE – Graphite EPS panel 1000×500 for ETICS insulation

What is it and what is it used for?

Greypor X31 TK8 RE and a panel in EPS with graphite for high-performance thermal insulation. It is suitable for ETICS coat And correction of thermal bridges. Declared lambda 0.031 W/mK, format 1000x500 mm. :contentReference[oaicite:3]{index=3}

Why choose it?

• Performance high with lambda 0.031 W/mK
• Reliable in ETICS with clear mechanical data: CS(10) 70 kPa, TR ≥150 kPathere>
• Easy to lay thanks to the 1000x500 mm slabs
• Thickness range complete (from estimate) to achieve the project transmittance
• CAM and EPD for informed purchases

Variants and coverage

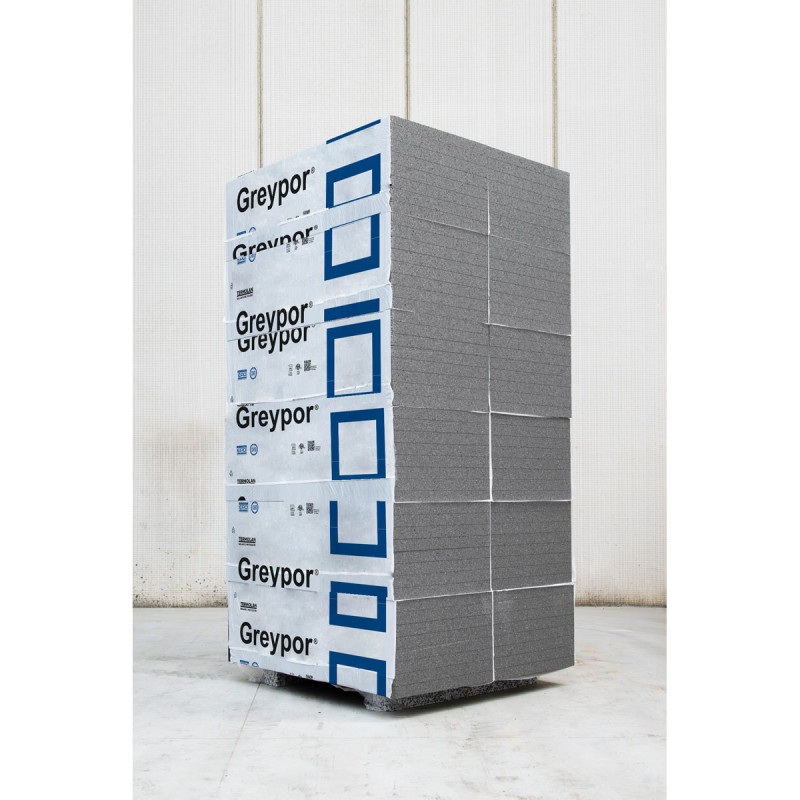

Sales unit: package (slabs 1000x500 mm = 0.5 m2 each). Standard EPS 1000x500 packages typical of the market; not included in the technical data sheet.

Main technical data

• Declared lambda λD/strong>: 0.031 W/mK
• Steam resistance µ/strong>: 30
• Reaction to fire: Euroclass E
• Compressive strength CS(10): 70 kPa
• Perpendicular tensile strength TR: ≥150 kPa
• Density: 14–16 kg/m3there>
• Format: 1000x500 mm
• Limit temperature: 75 C

How to use it (step by step installation)

1. Support preparation: clean, load-bearing, planar.
2. Glue suitable for the chosen ETICS system (perimeter kerb + points or complete trowelling).
3. Laying panels: from bottom to top, staggered joints, flatness check with straight edge.
4. Fixings: ETICS tiles according to the project.
5. Armored shaving: 1–2 coats with mesh and profiles for edges and drip edges.there>
6. Finish: primer + continuous coating.

Practical advice

• Simple cutting with a hacksaw or hot wire; trim any unevenness before shaving.
• Protect skirting boards and edges from impacts (corner guards). Avoid prolonged exposure to UV rays before installation.
• Don't confuse it with XPS: we're talking about that here.Of EPS with graphite.

FAQ

Is it suitable for the outer coat?
Yes, it is suitable for ETICS systems: always check the system specifications and project. :contentReference[oaicite:5]{index=5}

How many panels are in a pack?
We use standard 1000x500 EPS packaging to provide clear square meters per package. If the supplier indicates a different packaging, we will update.

What thicknesses are available on offer?
20 30 40 50 60 80 100 140 160 mm as per estimate. :contentReference[oaicite:6]{index=6}

Thermal performance by thickness

Note: The U above refers to the insulation layer only, not the finished wall.

If you're not sure what thickness to choose, consult the R table above or ask your technician.
