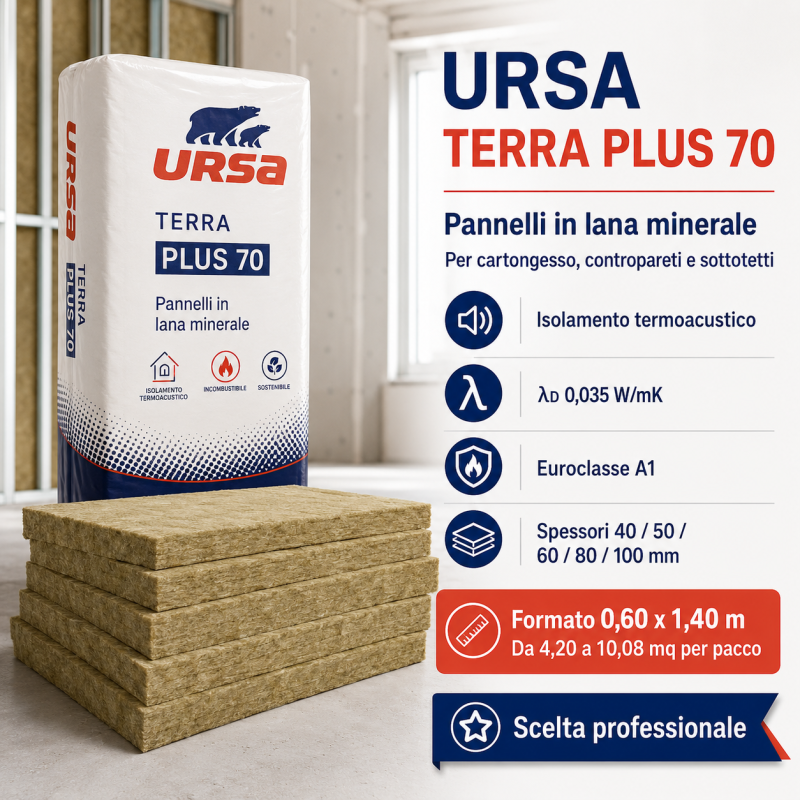

URSA TERRA PLUS 70 – A1 mineral wool panels for walls and attics (sold in bundles)

URSA TERRA PLUS 70 – thermal and acoustic insulation for walls and atticsh

URSA TERRA PLUS 70 is a hydrophobic mineral wool panel with CE EN 13162 certification, produced with URSA BiOnic technology. It guarantees excellent thermal insulation (λD 0.035 W/mK) and fire safety (Euroclass A1). The 0.60 x 1.40 m format is suitable for quick installation in drywall systems and false walls.p

Why choose it/h

• Thermal performance: λD 0.035 W/mK; RD up to 4.00 m²K/W depending on thickness.there
• Reaction to fire A1: non-combustible, suitable for residential and commercial use.
• Acoustic comfort: excellent absorption and resistance to air flow (AFr≥5 kPa s/m²).
• Easy to lay: lightweight panels, clean cut with a cutter or hacksaw.

Formats and covers (package sales)

Intended usesh

• Pinternal plasterboard walls with metal frame
• Masonry false walls for energy requalification
• Attics and ventilated roofs (between joists or under paneling)

Installation and DIY tips

1. Cutting: measure the center distance, add 1 cm and cut the panel with a cutter/jigsaw for a snap-fit.
2. Drywall: Insert the panels between the studs, avoiding gaps. Close with panels (double panels for better acoustic performance).
3. Attics: Place the panels between the structural elements, without crushing them. Maintain the continuity of the insulation.
4. Airtightness: seal joints and system holes with specific tapes/masses to maximize performance.
5. Safety: wear gloves, long sleeves, and goggles; ventilate the rooms during and after application.

FAQ

Is it moisture-resistant? Yes, it's hydrophobic and has a long-term water absorption of <3 kg/m²; it should not be exposed to direct rain during installation.

Is it suitable for external insulation? No: it's designed for drywall systems, false walls, and attics. For external insulation, use dedicated ETICS systems.

Is a vapor barrier needed? It depends on the stratigraphic layout and the climate. In heated interiors, consider airtightness on the warm side.

Technical references

• Panel dimensions 0.60 x 1.40 m; thicknesses 40–140 mm; λD 0.035; RD 1.10–4.00 m²K/W; A1.
• Packed roofing according to our estimate: 40=10.08 m², 50=8.40 m², 60=6.72 m², 80=5.04 m², 100=4.20 m².
