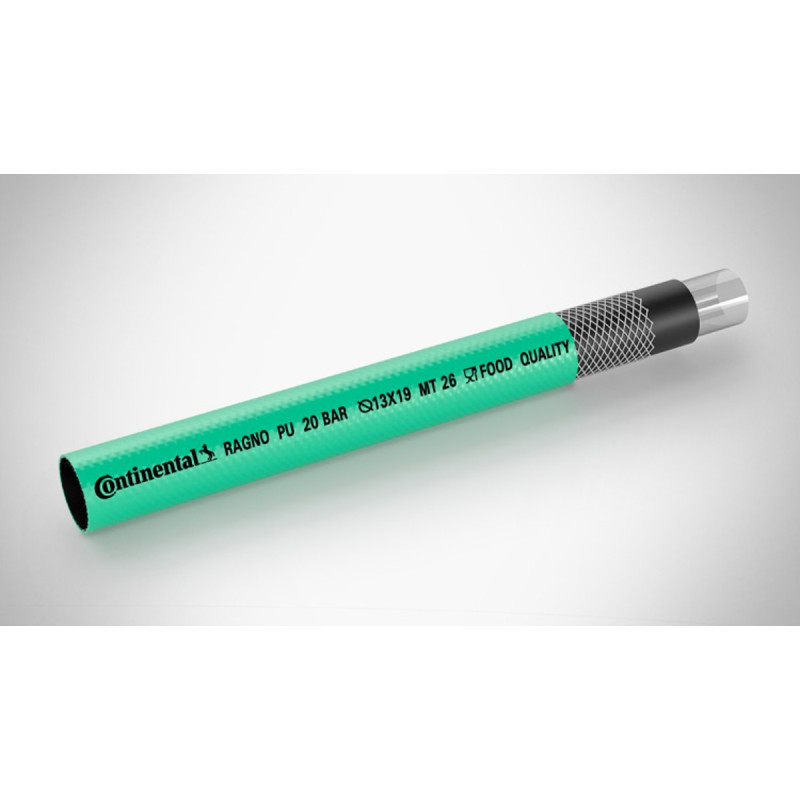

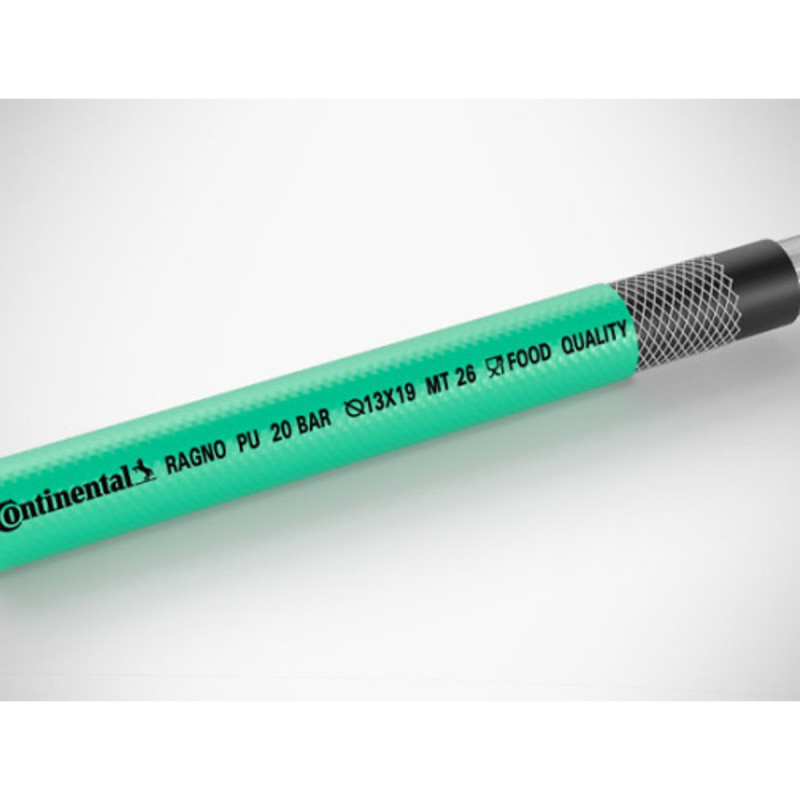

Hose RAGNO PU – abrasion-resistant polyurethane with textile reinforcement (–15°/+60°) – sold by the meter (min 5 m)

RAGNO PU hose – standard (non-conductive)

Technical hose in abrasion-resistant polyurethane and thermoplastic rubber with polyester textile reinforcement. Smooth inner/outer surfaces ensure clean flow. Designed for pneumatic tools, airbrushing and water-based paint sprayers.

Benefits

• Flexible, with high abrasion and crush resistance.
• Temperature range: –15 °C / +60 °C.
• Food contact: suitable according to the manufacturer’s Declaration of Conformity.

Typical uses

• Feeding pneumatic tools and air lines on machine tools.
• Airbrushing and water-based painting.
• Technical connections on benches and automation lines.

Available sizes (ID × OD) – sold by the meter

• 6 × 10 mm – min bend radius ~20 mm – typical pressure 20/17/15 bar (20/40/60 °C)
• 8 × 12 mm – ~22 mm – same pressure profile
• 10 × 15 mm – ~38 mm – same pressure profile
• 13 × 19 mm – ~65 mm – same pressure profile
• 16 × 22.5 mm – ~60 mm – same pressure profile

Values are indicative and may vary with diameter and temperature. For critical applications request confirmation and DoC.

Sale & cutting

Sold by the meter, minimum order 5 m. For coils or multiple cuts, add notes at checkout.
